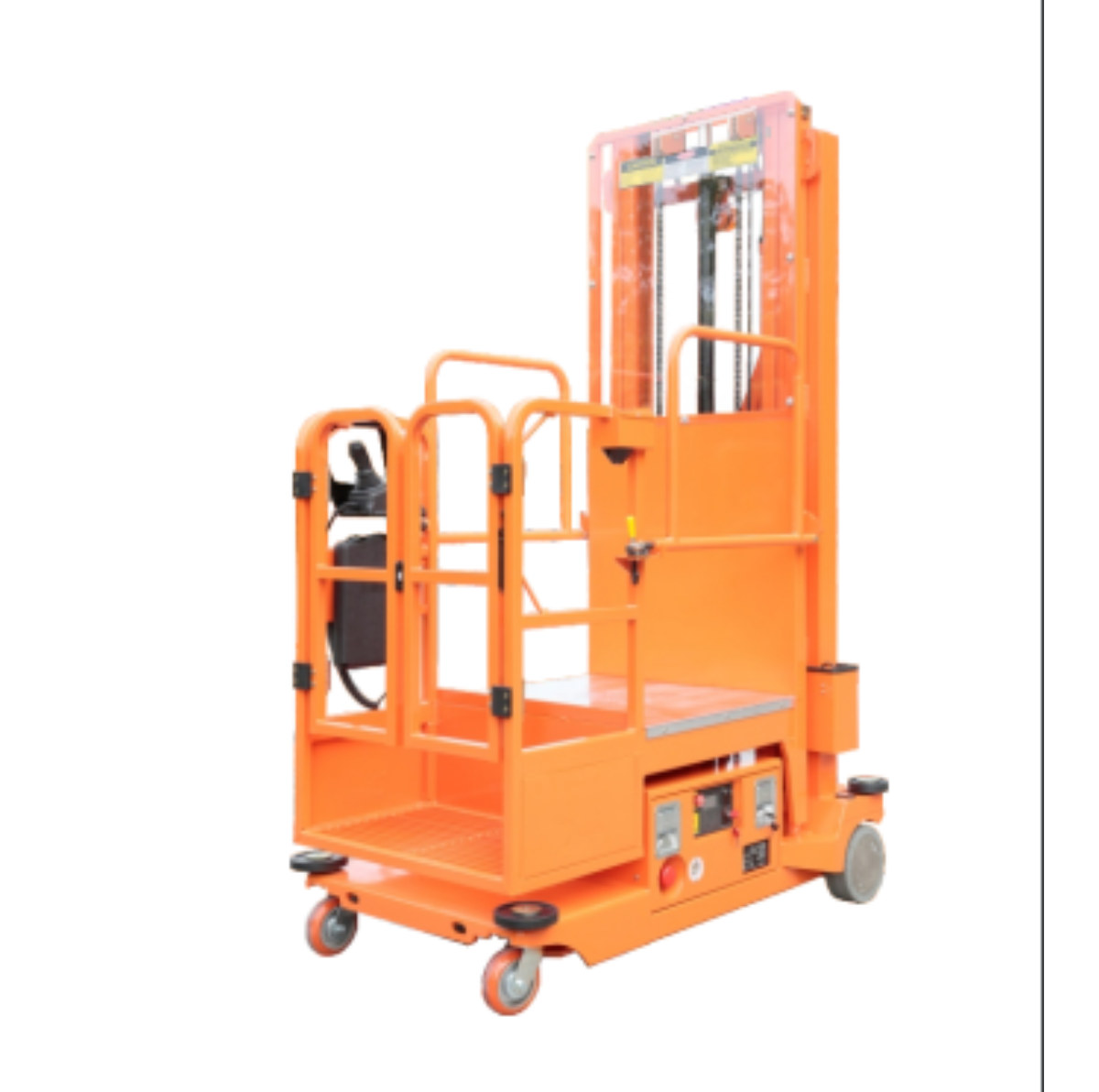

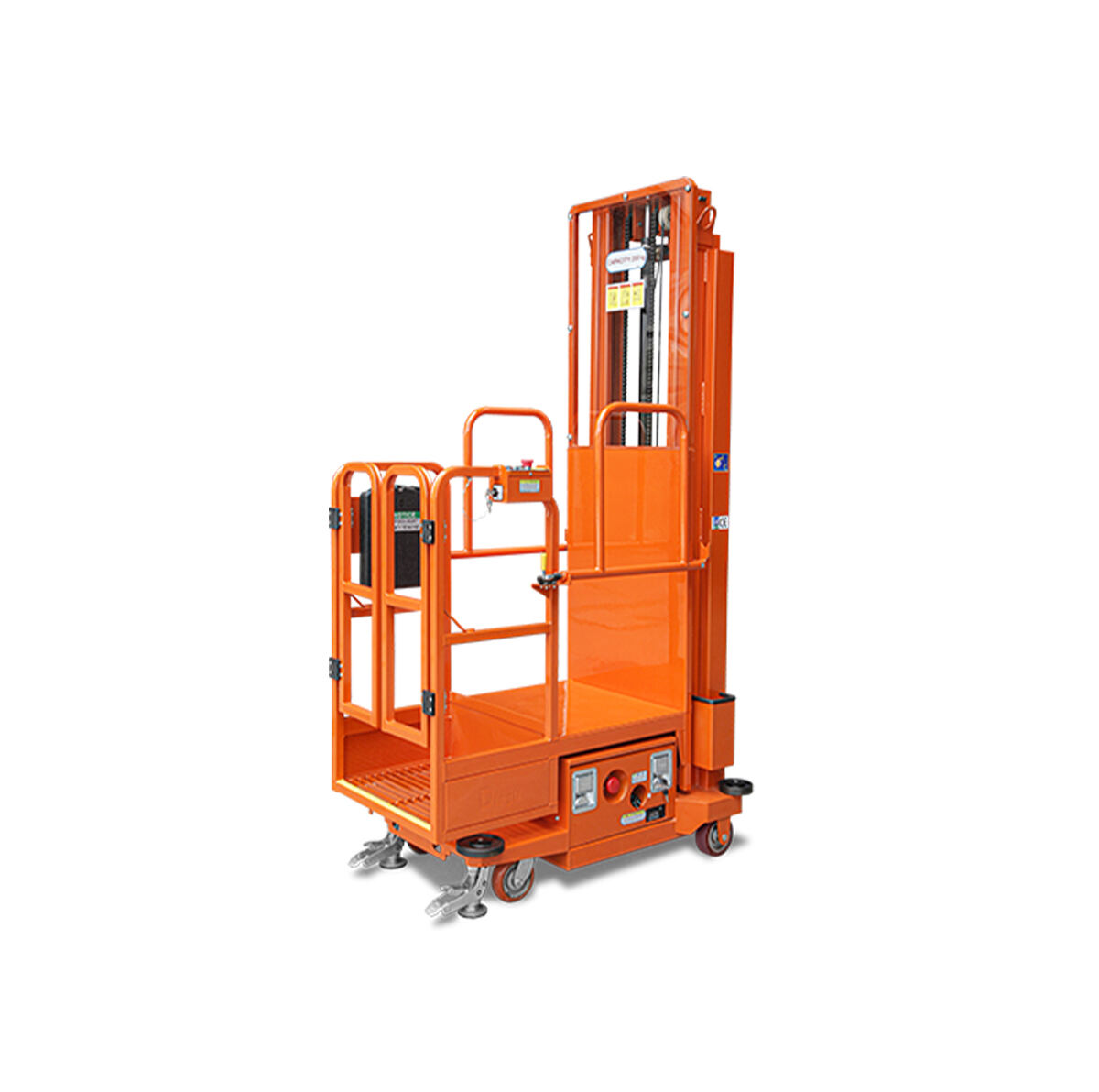

Self-Propelled Order Picker
The self-propelled order picker by Dingli is an industrial equipment designed for warehouse and distribution environments. This machine allows operators to easily, quickly and safely access materials stored at heights, making it ideal for picking and stocking tasks.
The order picker is self-propelled, which means it is equipped with its batteries as a power source and can move around the warehouse without additional equipment. This makes it highly manoeuvrable and efficient, as it can quickly and easily move from one location to another.
The order picker is also equipped with a platform that can be raised and lowered, allowing the operator to access products stored at various heights. In addition, the platform is spacious enough to accommodate both the operator and the products being picked, and it can be adjusted to different angles for greater ease of use.
Regarding safety features, the stock picker is designed with many safeguards to protect the operator and those working around the machine. These include guardrails, emergency stop buttons, and an interlocking gate preventing access to the platform when raised.
Overall, the self-propelled order picker is a reliable and efficient piece of equipment that can significantly improve the productivity of warehouse and distribution operations. In addition, its versatility and safety features make it a popular choice among industries of all sizes.
| Model No | ZDTY3-3.0S |
|---|---|
| Working Height | 5.0 |
| Power Type | Electric |
| Platform Height (m) | 3.0 |
| Year of manufacturing | |
| Machine Weight (kg) | 690 |
| Platform Capacity (kg) | 300 |
| Ground clearance (m) | 0.08 |
| Max. no of person | 1 |
| Power source (k.w.) | Battery |
| Gradeability | 25 |
| Max Lifting Height (m) | 3 |
| Ground Clearance (m) | 25 |
| Download |
- Proportional Controls
- Self-lock Gate on Platform
- Drivable At Full Height
- Non-Marking Tyre
- 2WD
- Automatic Brake System
- Emergency Lowering System
- Emergency Stop Button
- Cylinder Holding Valve
- Onboard Diagnostic System
- Tilt Sensor with Alarm
- All Motion Alarm
- Horn
- Hour Meter
- Automatic Pothole Protection
- Charger Protection
- Flashing Beacon
- Overload Sensor with Alarm
- Platform Work Light
- Chassis Protect Cover
| No. | Name |
|---|---|
| 1 | Signage |
| 2 | Painting |
| 3 | Inspection |
| 4 | Maintenance |
| 5 | Repair |
| 6 | Insulation |
| 7 | Logistics |
| 8 | Stocking |
