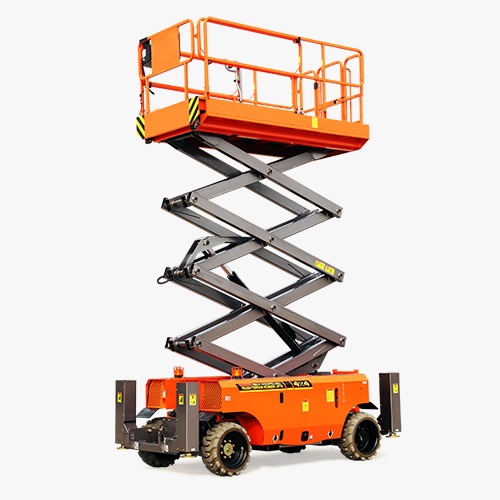

SELF PROPELLED ELECTRIC - DINGLI -JCPT1212AC
With a working height of 12m, the self-propelled electric scissor lift delivers safety, efficiency and productivity
at the worksite.
The battery-driven
scissor lift is equipped with a fully sealed AC system for enhanced drive
and lift. Advanced features such as an automatic pothole protection system make
the lift safer and reliable, while the unidirectional extension platform can
reach the operation point with swiftness.
The manlift equipment
is also equipped with an automatic display for fault codes for easy and
hassle-free maintenance. The elevated
work platform offers safer, higher levels of water and dust resistance with
a lower noise level and non-pollution leading to a productive and protective
environment that can match applications across various industries.
Scissor aerial lifts
are available for rent and sale across India. Get in touch now.
| Model No | JCPT1212AC |
|---|---|
| Working Height | 12 |
| Power Type | Electric |
| Platform Height (m) | 10 |
| Year of manufacturing | |
| Platform Size (LxW) | 2.27x1.1 |
| Platform Extension (in) | 0.90 |
| Machine Weight (kg) | 3060 |
| Overall height (Rails up) (m) | 2.49 |
| Overall height (Rails down) (m) | 1.96 |
| Ground clearance (m) | 0.10 |
| SWL (Kg) | 320 |
| Wheelbase (m) | 1.87 |
| Gradeability | 25 |
| Max Lifting Height (m) | 0 |
| Download |
- Proportional Joystick Controls
- Self-Locking Gates
- One-Way Platform Extension Deck
- Drivable At Full Height
- Non-Marking Tires
- 4×2 Drive
- Four-Wheel Braking
- Emergency Descent System
- Tubing Explosion-Proof System
- Onboard Fault Diagnostic System
- Tilt Alarm
- Motion Alarm
- Horn
- Hour Meter
- Safety Arm For Troubleshooting
- Standard Transport Forklift Holes
- Charging Protection System
- Flashing LED Beacon
- Foldable Guard Rails
- Automatic Pothole Protection
- Drive Enable
- Automatic One-Way Platform Extension Deck
- Manual Brake Release
- Lanyard Attachment Point
- Tie-Down And Lifting Points
- Platform Load Sense System
| No. | Name |
|---|---|
| 1 | Painting |
| 2 | Indoor |
| 3 | Outdoor |
| 4 | Maintenance |
| 5 | Repair |
| 6 | Industrial Maintenance |
